Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is imperative to ensure that your concrete floor meets the essential specifications. A robust and stable foundation is not merely important for the effective operation of the hoist; it is also critical for guaranteeing the safety of both your vehicles and the individuals operating the equipment. By thoroughly preparing your garage and adhering to the required guidelines, you can significantly improve the performance and longevity of your hoist system, ensuring a safe environment for all users.

Most car hoists necessitate a concrete slab that is at least 100mm (4 inches) thick. This measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, thereby reducing the likelihood of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal performance and safety during operation.

How to Accurately Assess the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a vital factor in ensuring the safe installation and operation of a car hoist. Numerous elements must be taken into account when determining the appropriate depth for your concrete slab to ensure it can adequately support the loads it will encounter during use. By understanding these factors, you can effectively avoid costly mistakes and enhance the overall safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert significant stress on the concrete floor beneath them. Therefore, it is crucial to understand the total weight that your concrete floor must support. This calculation involves considering not only the weight of the vehicle but also the weight of the hoist itself, which can add a considerable load to the floor.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Moreover, it is wise to include extra weight as a safety margin, ensuring that the structure can accommodate unforeseen circumstances without compromising safety.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation. Consulting with a structural engineer is a prudent choice, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness needed based on your specific circumstances and requirements.

Different Types of Car Hoists and Their Concrete Thickness Needs

It is important to recognize that various types of car hoists come with distinct requirements concerning concrete thickness. Two-post lifts and four-post lifts are two popular options for homeowners looking to integrate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, which necessitates a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures that the weight is evenly distributed and reduces the risk of structural failure.

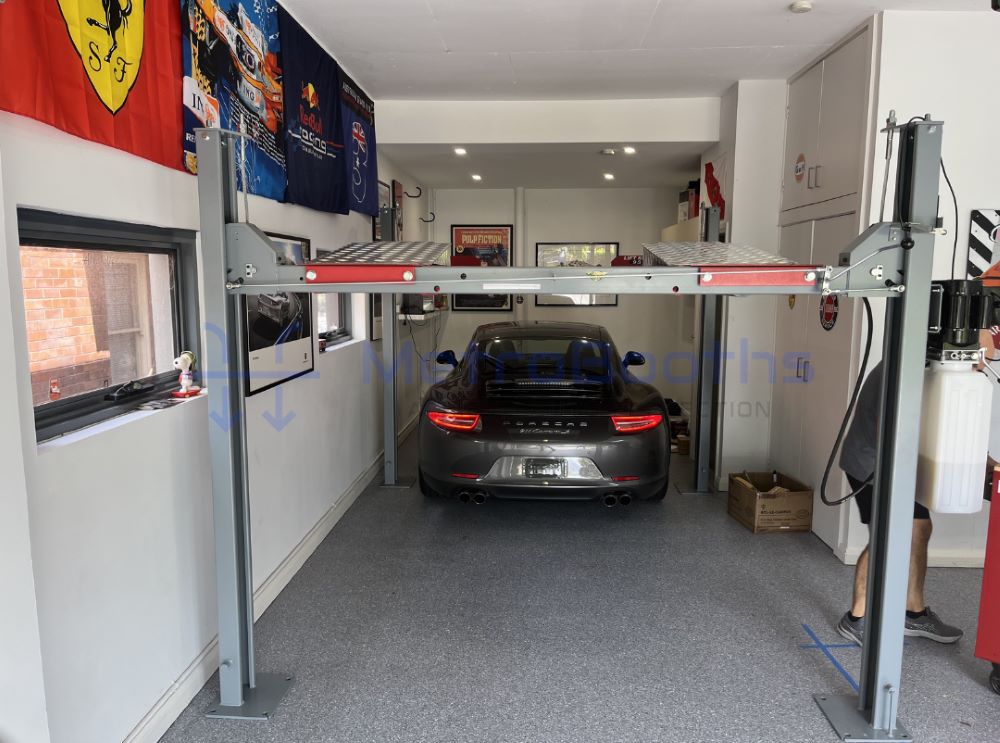

Conversely, four-post lifts tend to distribute weight more evenly over a larger area, which allows them to function efficiently with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is crucial in your planning and installation process, as it impacts your final decision based on the type of hoist you select.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for achieving optimal performance and longevity from your hoist system. Keep in mind that these recommendations serve as general guidelines; your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift.

The Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as critical as its thickness. Higher strength concrete can often be utilized at a thinner depth while still providing adequate support for heavy loads, which is particularly relevant in the context of a car hoist installation. This is vital for ensuring both safety and functionality.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting, ensuring durability and reducing the risk of failure.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. Adding steel mesh or rebar can greatly improve the overall strength of your concrete floor. As a result, this could allow you to utilize a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option, as it provides sufficient strength for the majority of car hoists without incurring excessive costs. This consideration is vital for homeowners who are budget-conscious yet require reliable performance.

If you have concerns regarding potential cracking, consider integrating fibers into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, enhancing the longevity of your installation and maintaining the integrity of your garage floor.

Essential Installation Factors for Ensuring Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring the safety of your garage environment.

Important Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before installing your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use, which is crucial for reliable operation.

For new concrete pours, it is essential to utilize steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, preventing any potential issues during operation.

Avoid placing the hoist over expansion joints or weak areas in the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide the necessary recommendations to ensure a safe installation.

Crucial Ongoing Maintenance After Installing Your Car Hoist

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality of your hoist and the safety of your garage.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to serious structural issues. Additionally, consider using protective mats under the lift arms to minimize wear and tear on the floor, extending its lifespan and maintaining the quality of your installation.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage of the hoist, making it an essential part of your upkeep routine.

Consider applying a sealant to the concrete to protect against stains and moisture intrusion. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity and guidance for potential users.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth offers adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may have different requirements for safe operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. Having a professional evaluate your floor is a wise decision to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, making thorough planning essential.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilized with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety and reliability.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety and efficiency, providing you with peace of mind.
